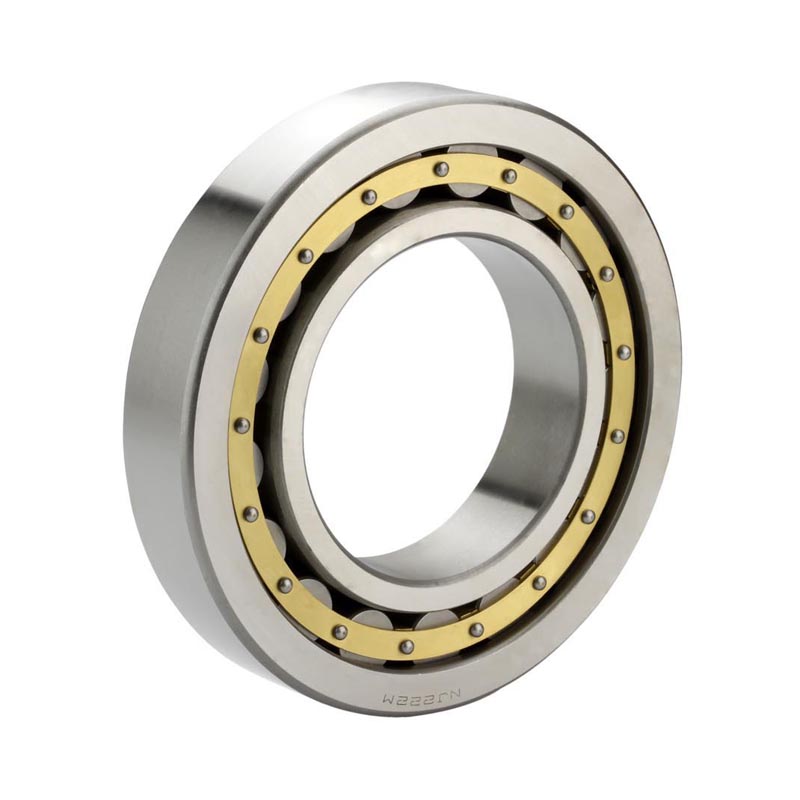

Cylindrical Roller Bearings probably have the simplest construction in the roller bearings category. These bearings are suitable for carrying relatively higher loads, at high-speed applications.
There is a linear contact between the rolling elements and raceway. Comparatively larger contact surface area enables Cylindrical Roller Bearings to handle much greater loads, compared to ball bearings. However, their axial load carrying capacity is limited. Numerous variants of this bearing type are available to match specific application requirements.
These bearings are suitable for applications involving light axial loads, specifically where accurate alignment of shaft is difficult. Cylindrical Roller Bearings available with two bore types, i.e. cylindrical and taper. Their cages are made of either pressed steel or brass material.
LAZIO can offer the following variants:
Single Row type – N, NF, NJ, NU and NUP series
Double Row type – NN and NNU Series (details available on request)
Higher load capacity design – E type
With snap ring groove
With snap ring groove and snap ring
With C2, CN and C3 radial clearance
Standard precision grade P0 and higher precision grade P6.
Pressed steel, machined brass and riveted steel cage
Cylindrical and taper bore
|
|
