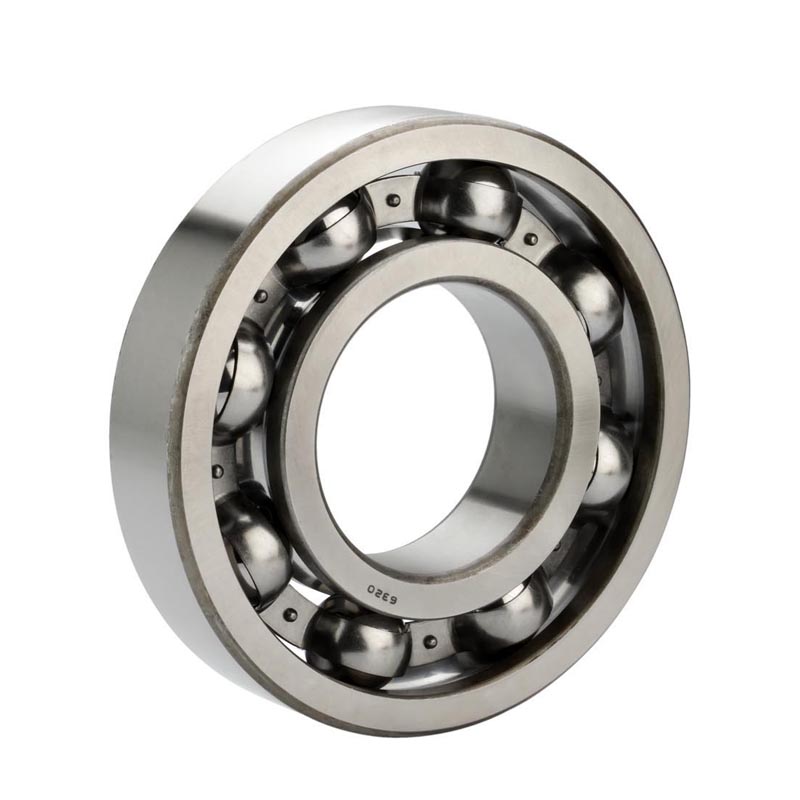

Deep groove ball bearings offer multiple options that serve a wide range of applications.

Types:

Single Row

Double Row

Open type

ZZ/2RS type

These bearings are designed for high radial and low axial load applications. Deep Groove Ball Bearings offer:

High radial load carrying capacity

Very high speed rotation

Very good running accuracy

Low noise and low friction torque

Good protection from contaminated environment with special seal/shield design.

LAZIO can offer the following variants:

Single Row – 60xx, 62xx, 63xx, 64xx series

Thin Type – 67xx, 68xx, 69xx Series

Double Row – 42xx, 43xx Series

Open basic design

Sealed/shield types

With snap ring groove

With snap ring groove and snap ring

With extended inner ring

K type with spherical outer ring

With Flange design

Pressed steel, riveted and nylon cage

With C2, CN, C3, C4 and C5 radial clearance

Standard precision grade (ISO Grade P0 – ABEC1) and higher precision grade (ISO Grade P6 – ABEC3)

Several other special types of KG Deep Groove Ball Bearings have been developed to meet specific application requirements. Technical information for such bearings is available on request.

Note: Deep Groove Ball Bearings are also available in stainless steel material and with food grade grease.
